PRODUCT DESCRIPTION
Model: YFSQG-2(4G version), 3 types: EU version and US,Japan, Australia version, Southeast Asia version
Parameters:
Module: Qualcomm High pass chip custom low power module
Frequency: Support full spectrum 4G networks in the US, Europe and China

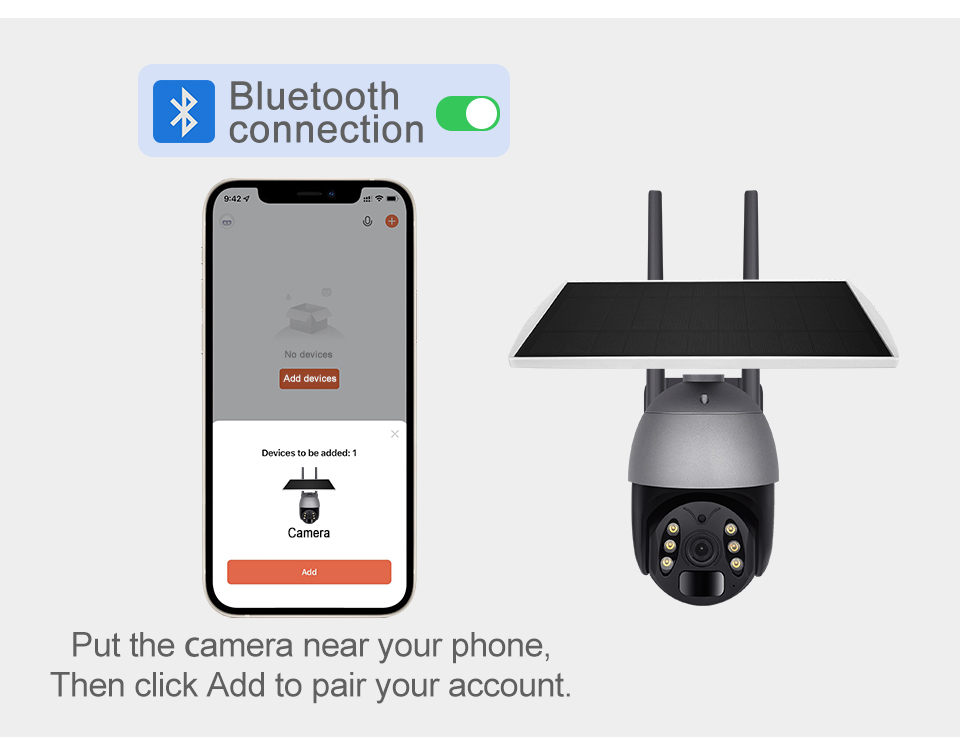

Distribution network: Qr code scanning
SIM card: Nano SIM
WiFi hotspot: Not Supported
Protocol: TCP/IP，HTTP，TCP，UDP，SMTP，DHCP，DNS，P2P
Main Domain Controller: T31ZL QFN88
Image Sensor: 3MP CMOS sensor SC3336 1/2.8
Video Streaming: 2304H*1296V/30fps
Mobile detection: PIR + mobile detection + humanoid detection multiple intelligent detection, effective distance 10 meters
Night vision mode: 850nm infrared +White light，App selection
Night vision distance: effective lighting distance of about 10m
Camera lens: 3MP High definition camera 3.6MM F=2.8 level FOV 120 degrees
Battery: 4*18650 lithium battery, solar rechargeable battery
Charge: 8W solar power continuous charging, support USB port about 10 hours full charge
Wake up/sleep time: 15s no sleep
System: Lite OS
Audio codec: AAC and G.726
MIC: High sensitivity -38dB
Video code: H264/H265
AEESS: Support
ANGLE: Horizontal:355°; Vertical:90°
Key: Power/reset key
Status: LED (blue & red)
Memorizer: Support TF Card 4GB-128GB and cloud storage
Playback: Event list and cloud storage playback
Grade of waterproof: IP65
Full duplex intercom: support
APP: Tuya, ios10.0，android5.0
Temperature: -30℃ ~+60℃
Humidity: ≤80%RH
Dimension and package:
product dimension: 2888*179*151mm
product weight:1.7KGS
package: 8pcs/carton
carton size 59*37.5*32.5CM
15KGS/carton
This product is a kind of outdoor monitoring camera without power connection, wiring, simple installation and ready to use. It is suitable for the entrance of home, yard, fishpond, orchard, breeding farm, mine, construction site and all places where it is not convenient to connect power and wiring.
Product advantages
1. No connection: solar charging and built-in lithium battery power supply;
2. No wiring: no cutting through the wall, no damage to the decoration;
3. No cable: monitoring without cable;
4. Remote view: with network, you can view remotely anytime, anywhere;

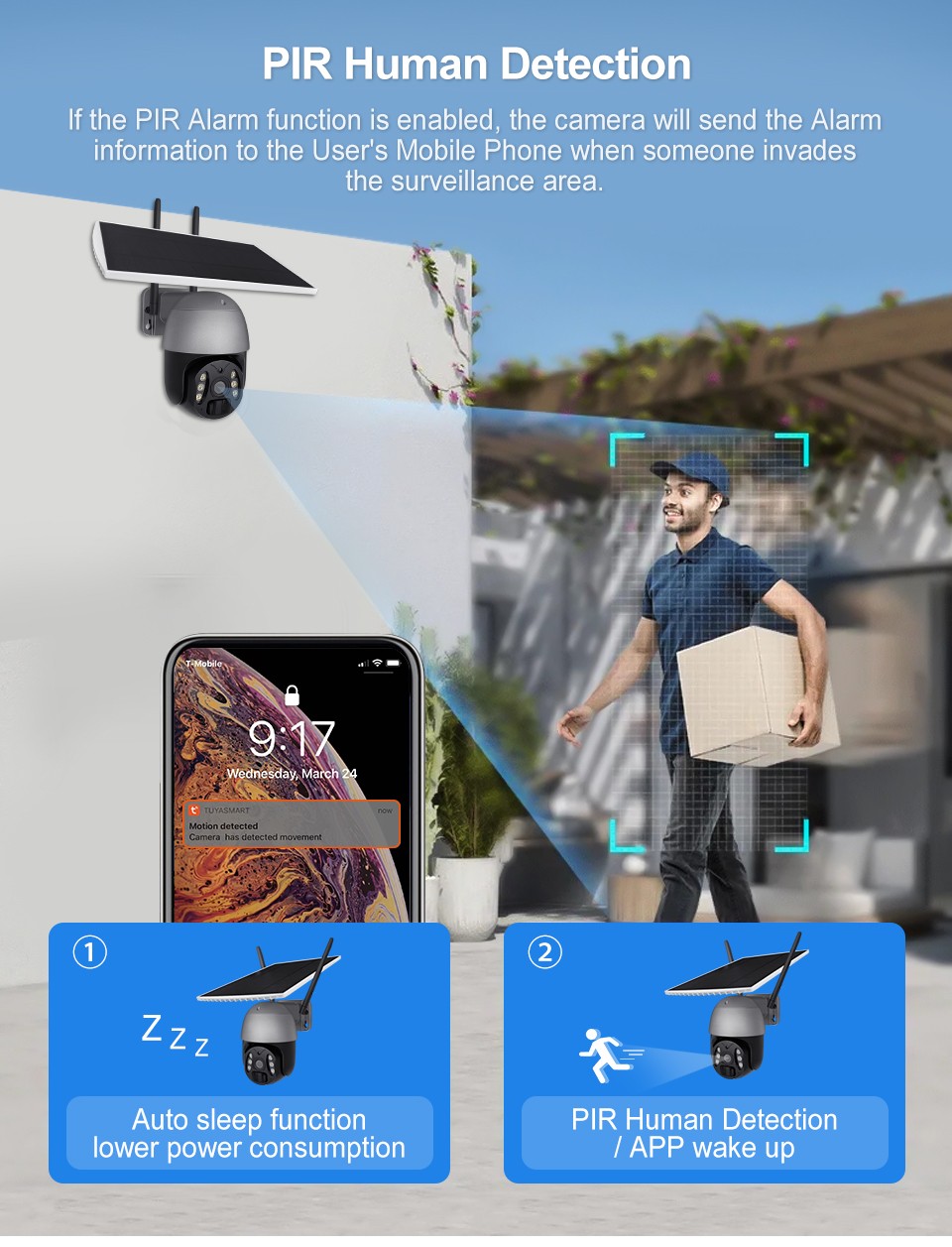

5. Human body induction: when sensing a person, take a video immediately;
6. Privacy protection: local storage, no leakage;
7. Two way voice: monitoring recording, real-time intercom;
8. Simple installation: self installation, no need to invite professional construction personnel;
9. double light source night vision full color: white light auxiliary light source, night can also display color picture;

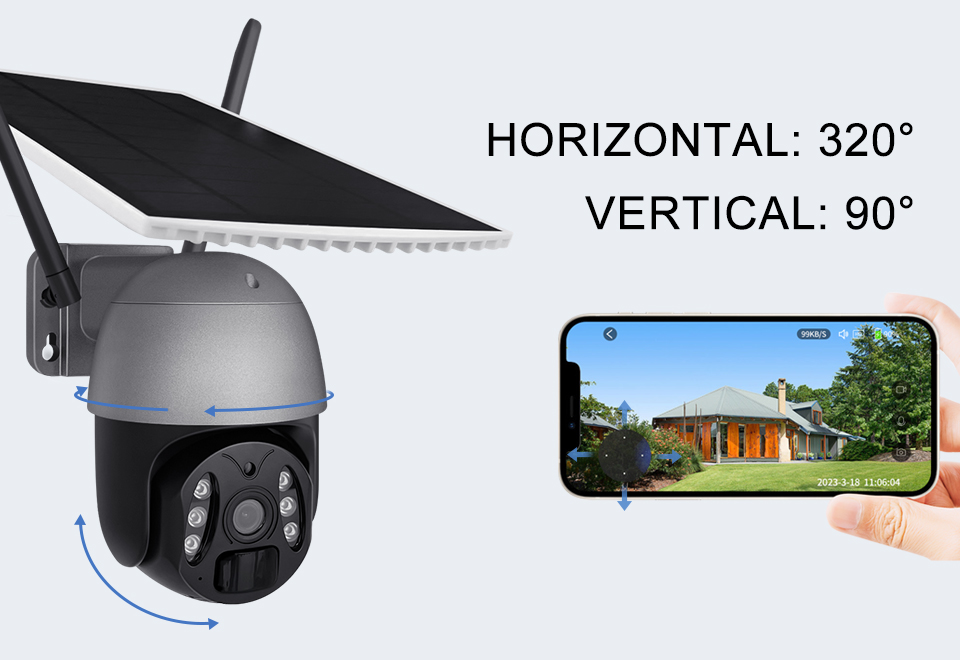

10.Flexible monitoring of the cradle head rotation: the cradle head rotation can be viewed at 320° horizontally and 90°vertically；
11. Support access to Google assistant、Amazon Alexa;
