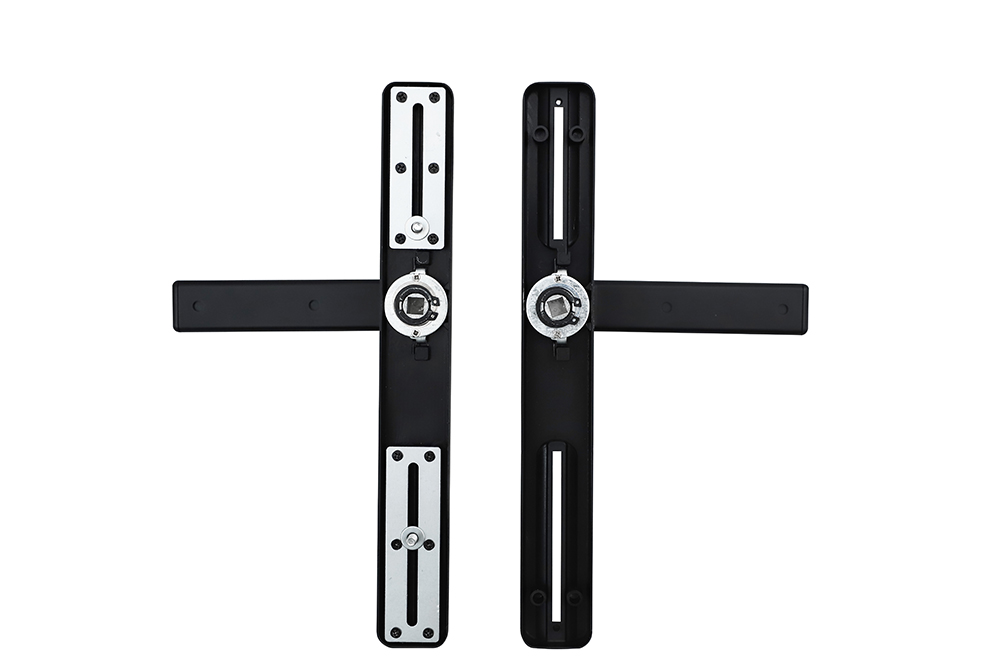

Dual Side Bluetooth TTlock Smart Handle YFBF-L072
Dual side fingerprint
TTlock APP
PRODUCT DESCRIPTION
Model: YFBF-L072(TTlock bluetooth version)
Material: Zinc alloy
Color: Black
Mortise: default 6085 mortise, also can use other 85 mortise like 4585, 3585 etc.
Dimension: 280*36*14.5mm
Unlock: fingerprint, password, key, bluetooth, wifi(need gateway)
Fingerprint reader: 120*120
Screw hole distance: 230mm
Fingerprint capacity: 50pcs
Passcode capacity: 250pcs
Random passcode: no limited
Powered: 4 AAA battery
Gross weight: around 1.9KG/set, 8 sets/carton
Internal box size: 37*20*10cm
Outer box size: 44*39*43cm
Advantages:
Regardless of the left and right directions, easy to install
No need connect cable, easy to install
With buzzer
Support passage mode
Support Mute mode
With indicator light
With low voltage prompts
The bottom of the panel has a double-layer non-slip pad, the screw hole distance is adjusted
Suitable for Swing door or sliding door
Stand alone system/bluetooth(TTlock version) for option
Single side fingerprint or double side fingerprint for option
