Slim Fingerprint Smart Door Lock YFF-L072
Zinc alloy material
Stand alone or TTlock APP(bluetooth version) for option
PRODUCT DESCRIPTION
Model: YFF-L072(stand alone version)
Material: Zinc alloy
Color: Black
Mortise: default 6085 mortise, also can use other 85 mortise like 4585, 3585 etc.

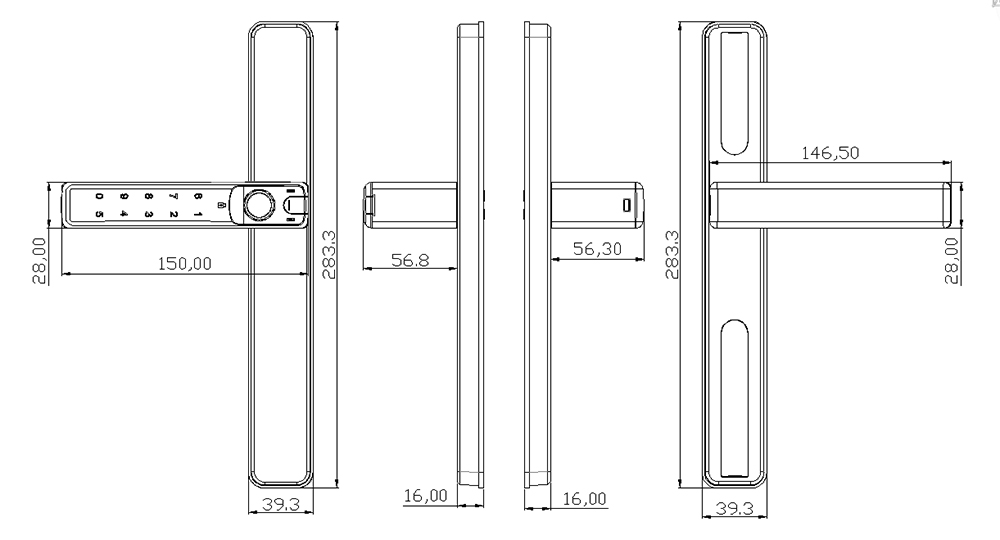

Dimension: 280*36*14.5mm
Unlock: fingerprint, password, key
Fingerprint reader: 160*160 big size( TTlock version is 120*120)
Screw hole distance: 230mm
Fingerprint capacity: 100pcs
Passcode capacity: 50pcs

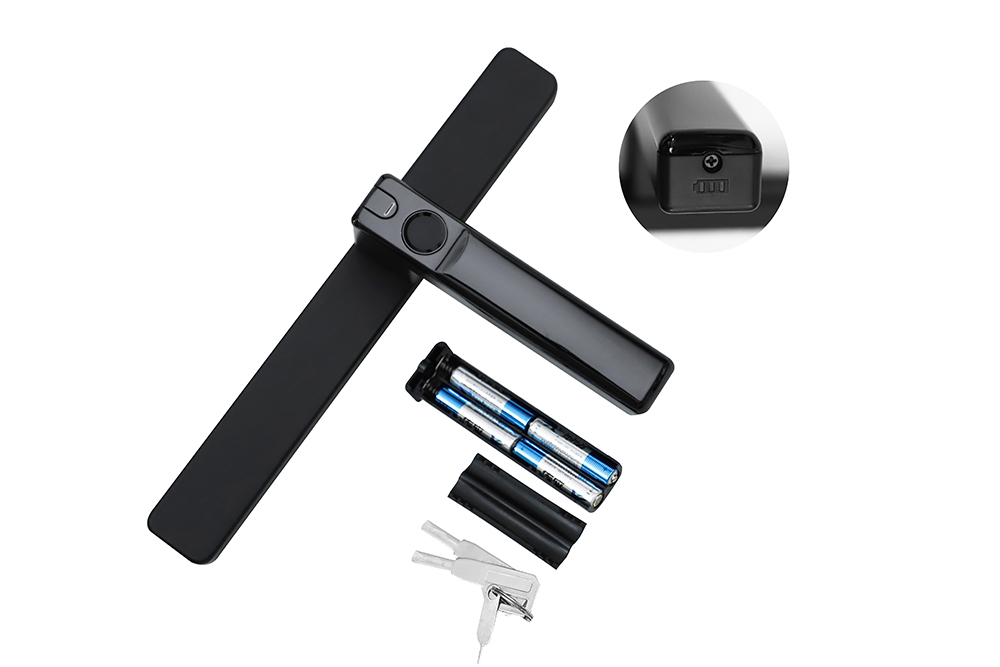

Powered: 4 AAA battery
Gross weight: around 1.9KG/set, 8 sets/carton
Internal box size: 37*20*10cm
Outer box size: 44*39*43cm
Advantages:
Regardless of the left and right directions, easy to install
No need connect cable, easy to install
With buzzer
Support passage mode
Support Mute mode
With indicator light
With low voltage prompts
The bottom of the panel has a double-layer non-slip pad, the screw hole distance is adjusted
Suitable for Swing door or sliding door
Stand alone system/bluetooth(TTlock version) for option
Single side fingerprint or double side fingerprint for option
