PRODUCT DESCRIPTION

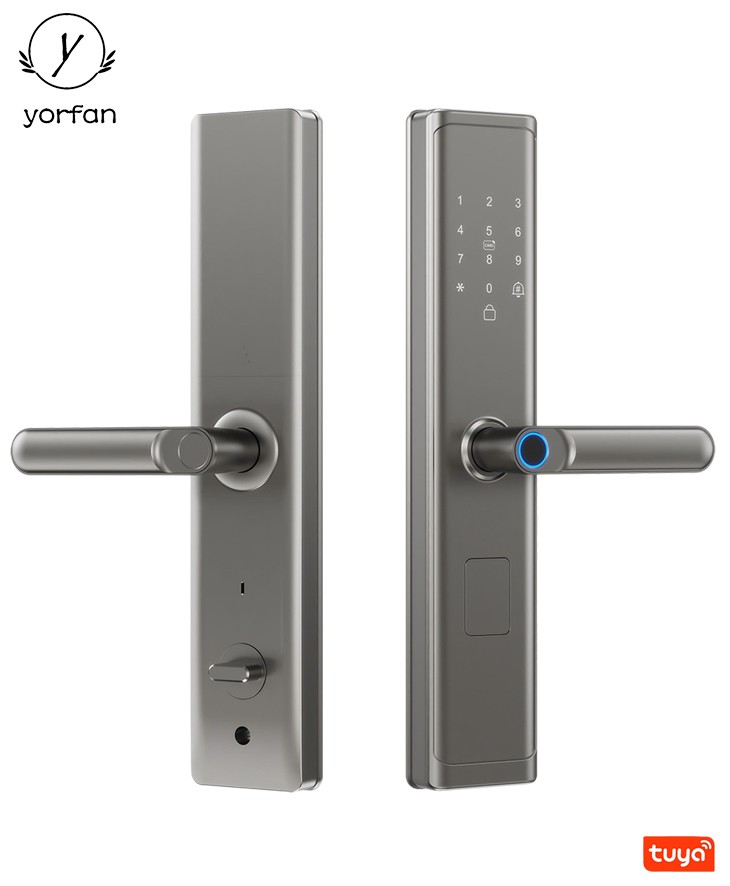

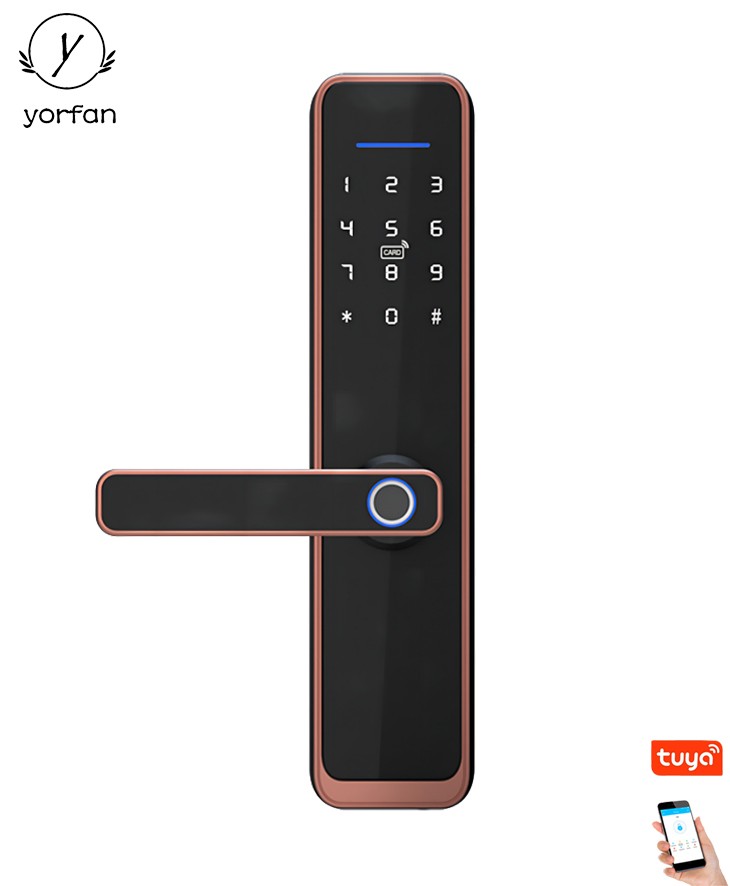

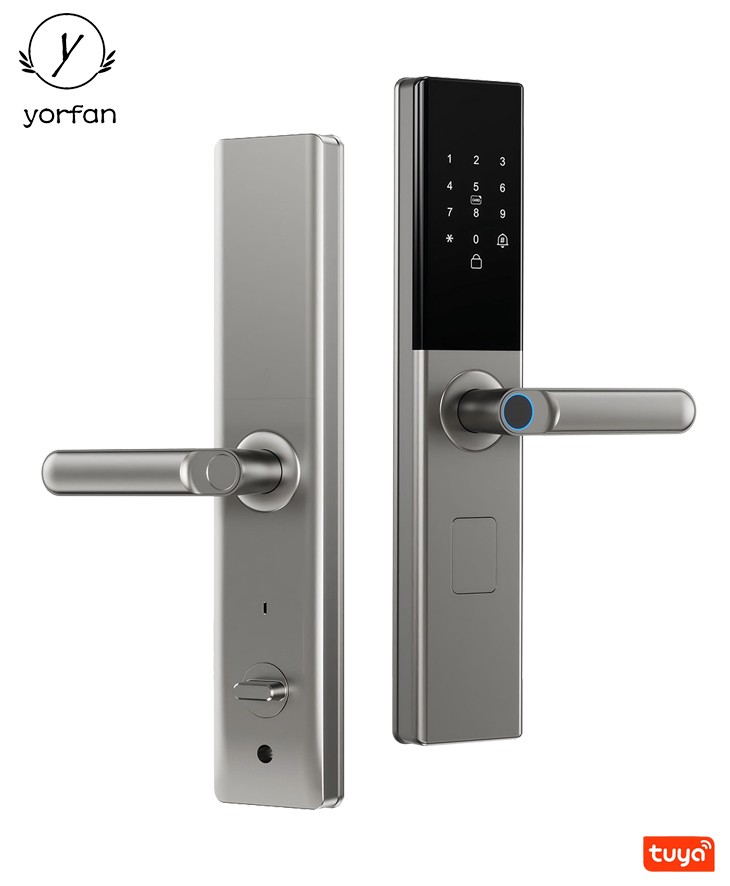

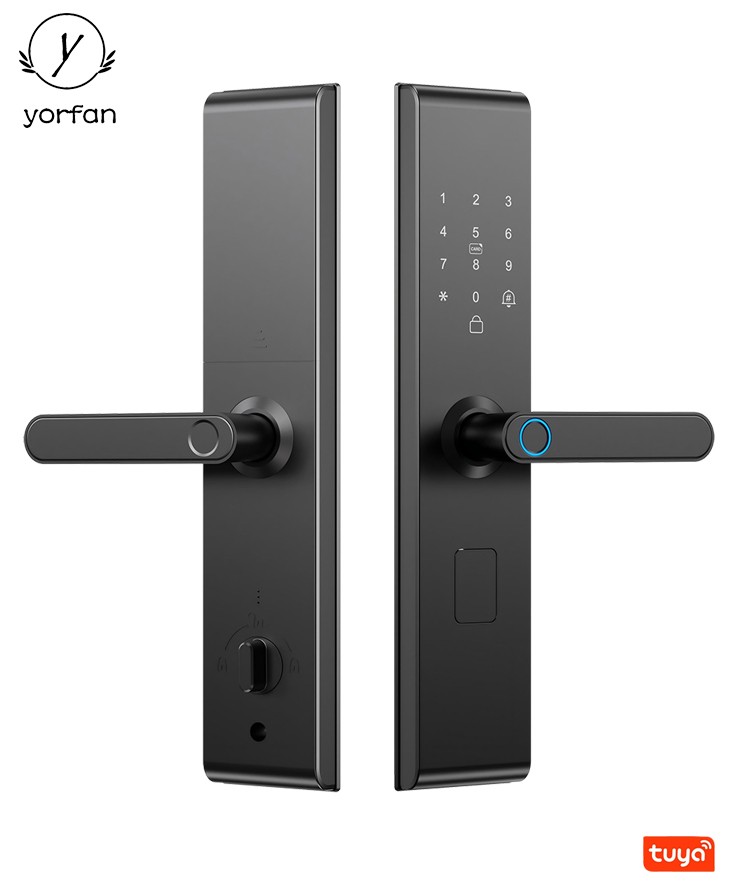

Model: YFFW-X3
Material: aluminum alloy
Color: black, red bronze
Dimension: 300*68*21MM
Mortise: Single latch or 5050 or 4085,6085,5072, KS etc.
Powered by :4PCS AA battery
Unlock: bluetooth,fingerprint,card,key,wifi,password(different version have different way)
Version: Stand alone; TTlock(bluetooth); Tuya (wifi), Tuya Zigbee, TTlock WIFI(no need gateway)
Power supply: 4.5V-6.5V (ie 4 AA batteries)
Typical quiescent current: <50 mA (battery life can exceed one year)
Working current: <200 mA (strong driving ability)
Quiet current: <50UA (strong driving ability)
Applicable door thickness: 35-50mm
Resolution: 500DPI
Rejection rate: ≤0.15%
False acceptance rate: ≤0.00004%
Working temperature: -25℃-65℃
Working environment humidity: 5-95%RH (no condensation)
Option: 8 different country languages for option(Portuguese Spanish Vietnamese Thai Indonesian Arabic Russian English),need extra cost（tuya version）
App:TTlock or Tuya
also have without fingerprint version for option
This model WIFI version have 3 option:
one is TTlock APP wifi directly,no need gateway
one is Tuya APP wifi directly,no need gateway
one is TTlock bluetooth plus gateway to achieve wifi function
Option: 8 different country languages for option(Portuguese Spanish Vietnamese Thai Indonesian Arabic Russian English),need extra cost(Tuya version)
